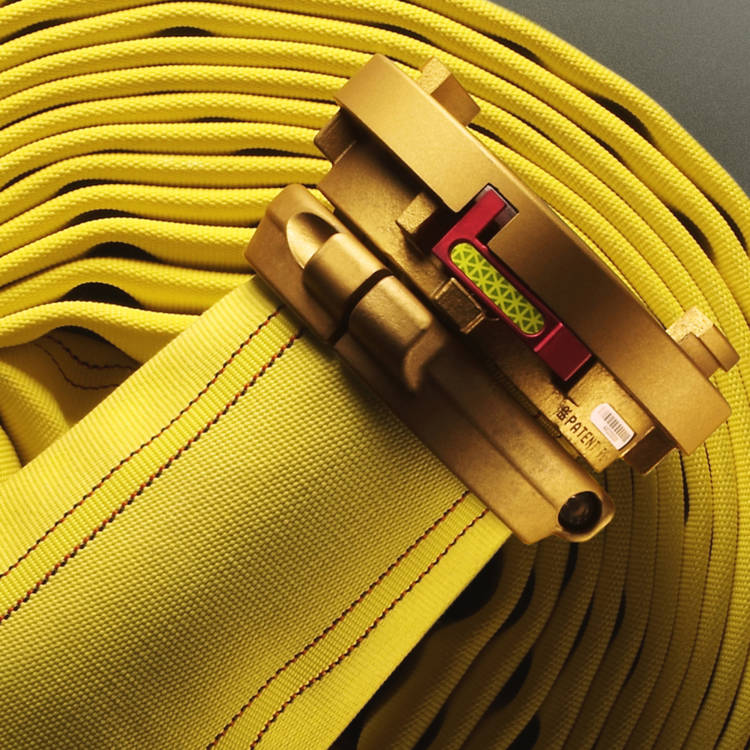

MegaFlo® is a large diameter hose designed for fastest deployment, easiest recovery and the best packability in the industry.
We engineered our patented Breather Technology™ into our 3-5" LDH, which allows trapped air to escape between layer while increasing flexibility and strength. Our unique Mertex® lining yields extremely low friction loss, achieving maximum flow and flexibility with superior adhesion guaranteed to never delaminate.
Ideal for large volume attack and supply where both light weight and superior strength are critical.
| Specification | Imperial Measurement | Metric Measurement |
|---|
The inner hose jacket shall have 100% filament polyester warp and weft yarn. The outer jacket shall be made with virgin spun polyester warp yarn and a minimum 10.2 picks per inch (400 per Meter) of filament polyester weft yarn. The outer jacket shall also have “Breather Technology” created by four sections with twenty ends each of heavy gauge filament polyester yarn, spaced equidistant from each other with a dual red and black boarder.
This unique construction must provide increased flexibility, superior packability, greater strength, ease of air evacuation and added visibility. The outer jacket shall be impregnated in one of the standard NFPA colors with high performance polymeric dispersion (Treatment may result in shade change of the boarder color line).
The lining (waterway) must be made from polyurethane and must be applied using a fused process that welds the polyurethane directly to the textile while the hose is being woven, without the use of adhesives or hot melt. The fused lining process must create a virtually inseparable unit without the use of adhesives, yielding an extremely low friction (pressure) loss by filling in the corrugations of the weave, creating an ultra thin and smooth waterway. Fire hose made using adhesives of any type do not meet this specification. The lining shall be approved for use with potable water.
The coupling shall have the country of origin legibly marked on the outside surface as required in NFPA 1963. When Storz couplings are specified, hose must have a coupling that features “lock protector” technology. When Gold anodized finish is specified, the Storz lock lever must have recessed reflective material to facilitate rapid identification and night time visibility.
The coupling must have a recessed engraved arrow indicating the direction of coupling engagement as well as a reflective lock indicator located 180 degrees opposite the lock lever. These recessed reflective arrows and lock indicator must also provide nighttime visibility. The coupling must also have a recessed area to facilitate color and bar coding and/or identification markings.
WEIGHT
The maximum weight shall be as detailed in the table on the
previous page.
ADHESION
The adhesion shall be such that the rate of separation of a 1 ½” / 38mm strip of polyurethane, transversely cut, shall not be greater than 1/4” / 6mm per minute under a weight of 12 lbs / 5.5 kg.
COLD TEMPERATURE FLEXIBILITY
The hose must remain fl exible to -65°F (-55°C).
SERVICE PRESSURES
Service pressure shall be minimum 300 PSI / 2070 kPa and must be stenciled on the hose.
MANUFACTURE
Both hose and couplings must be manufactured in North America. Couplings must be USMCA/CUSMA compliant
WARRANTY
The fire hose shall have a 2-10-L warranty, as described below.
Full warranty terms available upon request.
Mercedes Textiles specializes in manufacturing premium double-jacket polyurethane fire hose. The inner jacket features our unique Mertex® lining — not EDM/rubber or nitrile — for unrivaled performance and superior quality.
From the hydrant to the nozzle, Mercedes manufactures both supply and attack fire hose in all standard sizes. We're known for our legendary KrakenEXO line, but we offer other quality lines for a variety of applications and priorities. We've got the hose you need, guaranteed.
All Mercedes hose and couplings are manufactured in North America.
Mercedes Textiles developed a patented weave process for our Mertex® inner hose linings. We weave a molten lining material directly into the fabric jacket at the loom. This offers a superior waterway — free from adhesives, glues or other bonding agents. The smoother surface minimizes turbulence and friction to deliver greater water flow at the discharge end. Mertex® lining also ensures your hose will never delaminate!
Mercedes Textiles' patented Breather™ Technology is an exclusive weave process that releases trapped air and water for superior packability, while also adding flexibility and strength. We currently incorporate these exclusive stripes into our large diameter hose MegaFlo® Breather and our newest KrakenEXO SUPER II™.
We take fire hose standards seriously – because YOU are on the line, and that matters to us. Mercedes is committed to ensuring every hose we manufacture meets or exceeds the latest NFPA 1960 (1961) standard. We have all the necessary testing equipment for each requirement, including the new UL-19 Radiant Heat testing required as of March 2021.
UL & ULC LISTINGS
On top of our own internal testing, we go above and beyond for many of our attack hose lines by submitting them to Underwriters Laboratory (UL) for third-party testing and approval. UL provides safety-related certification, validation, testing, inspection, auditing, advising and training services for fire hose products. Mercedes is world-renown for the premium quality, detailed specifications and superior performance of our fire hose.
FM APPROVAL
The international insurance carrier FM Global provides an independent testing division. Using scientific research and testing, FM Approvals make sure products conform to the highest standards for safety and property loss prevention. They follow five steps to make sure the products they’re testing meet quality guidelines. Products that pass get the “FM APPROVED” mark.
Mercedes takes pride in our products. We understand that a lot rides on their performance – from efficiency to safety. So when you have our lines, you can rest assured we have your back.
On most of our municipal products, we include either a 10-L and/or 2-10-L warranty – the best in the industry.
